Connecting with Others

Unlike traditional applications where users connect through central servers, Osvauld users establish direct peer-to-peer connections through cryptographic handshakes. This process ensures that only authorized users can connect while maintaining complete decentralization.

Two Connection Pathways

There are two ways users can connect to each other:

1. Direct Connection via One-Time Token

A user generates a temporary connection token that others can use to establish trust and connect directly.

2. Delegated Connection via Resource Sharing

When a user shares a resource that’s already shared with others, those collaborators receive delegated connection tokens to connect directly with the new user.

One-Time Connection Token

Token Structure

The one-time connection token is a UCAN with specific characteristics:

{
  "alg": "EdDSA",
  "typ": "JWT"
}
{
  "aud": "*",
  "cap": {
    "livnote:user-connect:alice_user_id": {"use": [{}]}
  },
  "exp": 1756453132,
  "iss": "alice_did",
  "ucv": "0.10.0-canary"
}

Key properties:

• Algorithm (alg): EdDSA signature algorithm
• Type (typ): JWT token type
• Issuer (iss): The user’s UCAN public key as a DID
• Audience (aud): Wildcard * allowing anyone to use it
• Expiration (exp): Unix timestamp for 24-hour validity period
• Capability (cap): user-connect permission for the issuer’s user ID
• UCAN Version (ucv): Version 0.10.0-canary

Permanent Connection Token

After successful handshake, users exchange permanent tokens with extended capabilities:

{
  "alg": "EdDSA",
  "typ": "JWT"
}
{
  "aud": "bob_did",
  "cap": {
    "livnote:user-connect:alice_user_id": {"use": [{}]},
    "livnote:user-share:alice_user_id": {"use": [{}]}
  },
  "exp": 2702146687,
  "iss": "alice_did",
  "ucv": "0.10.0-canary"
}

Key properties:

• Specific Audience: Targeted to the recipient’s DID instead of wildcard
• Dual Capabilities: Both user-connect and user-share permissions
• Long Lifetime: 30-year validity (exp: 2702146687)
• Bidirectional: Both users issue similar tokens to each other

Delegated Connection Token

When sharing resources creates transitive connections, delegated tokens contain embedded proof chains:

{
  "alg": "EdDSA",
  "typ": "JWT"
}
{
  "aud": "carol_did",
  "cap": {
    "livnote:user-connect:bob_user_id": {"use": [{}]}
  },
  "exp": 2702146687,
  "iss": "alice_did",
  "prf": ["parent_token_cid"],
  "fct": {
    "proof": "alice_permanent_token_for_bob"
  },
  "ucv": "0.10.0-canary"
}

Key properties:

• Specific Audience: Targeted to Carol’s DID instead of wildcard
• Connect Capability: Permission for Carol to connect to Bob
• Long Lifetime: 30-year validity matching permanent tokens
• Proof Reference (prf): CID of parent token in standard UCAN proof field
• Embedded Proof (fct.proof): Full parent token embedded in facts field
• Delegated Authority: Alice issues token allowing Carol-Bob connection
• Chain Validation: Bob can verify the delegation chain back to Alice’s authority

This dual-proof mechanism (both CID reference and embedded token) ensures the delegation chain can be validated even when the proof resolver cannot find the parent token by CID.

Connection Flow Scenarios

Scenario 1: First-Time Connection

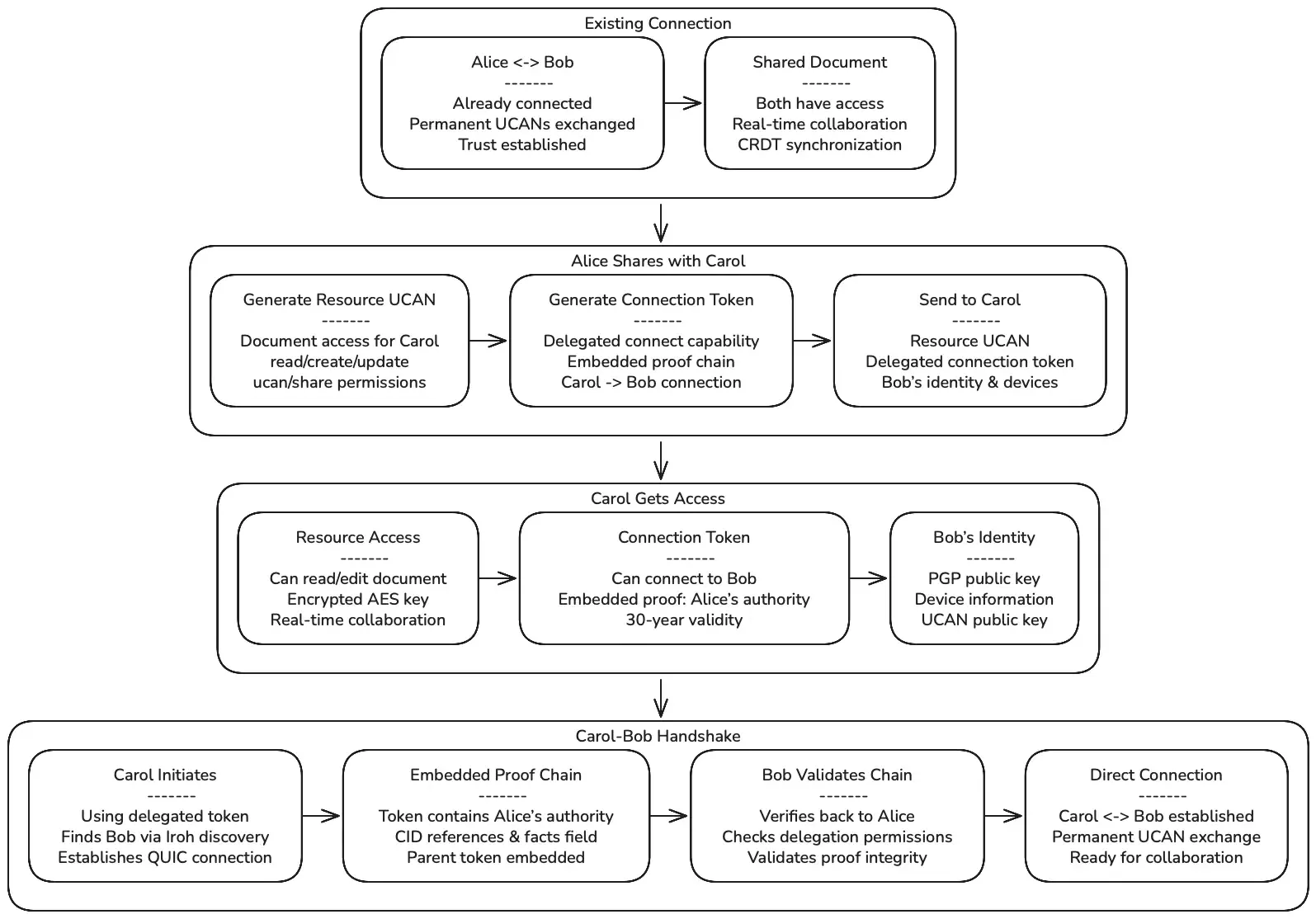

Scenario 2: Delegated Connection

Connection Establishment Process

QUIC Connection Setup

Before any handshake messages, peers establish a secure transport connection:

1. Peer Discovery: Using Iroh’s default discovery mechanism to find the target device by its device key (node ID)
2. QUIC Connection: Direct encrypted connection using device keys for authentication
3. Channel Security: Device keys encrypt the QUIC transport layer

Identity Verification During Handshake

All handshake messages include PGP signature verification:

// Extract UCAN public key from PGP-signed message
let peer_ucan_pub = crypto_utils::verify_clear_text_message(
    &payload.peer_user.public_key,    // PGP public key
    &payload.signed_ucan_pub,         // PGP-signed UCAN public key (10min validity)
).await?;

This process:

1. Parses PGP Certificate: Validates the peer’s PGP public key format
2. Verifies Cleartext Signature: Uses PGP to verify the signed UCAN public key
3. Checks Signature Validity: PGP signature has 10-minute expiration for freshness
4. Extracts Message: Returns the original UCAN public key if signature is valid
5. Binds Identity: Cryptographically links PGP identity to UCAN permissions

Handshake Message Types

The handshake protocol uses different message flows depending on whether this is a first-time connection or an existing relationship:

First-Time Connection Flow

When users connect for the first time (marked as first_sync = false in the database), they exchange complete identity information:

FirstConnectRequest - Initial connection with one-time or delegated token:

FirstConnectRequest {
    devices: Vec<Device>,           // Initiator's device list
    issued_ucan: String,            // Permanent UCAN for responder
    signed_ucan_pub: String,        // Initiator's UCAN pub key, PGP-signed
    one_time_ucan: String,          // Connection token (one-time or delegated)
    peer_device: Device,            // Initiator's current device
    peer_user: User,                // Initiator's user identity
    connection_type: ConnectionType, // Purpose of connection
}

FirstConnectResponse - Complete identity exchange:

FirstConnectResponse {
    peer_user: User,                // Responder's identity
    peer_device: Device,            // Responder's current device
    devices: Vec<Device>,           // Responder's complete device list
    ucan_token: String,             // Initiator's permanent UCAN
    issued_ucan: String,            // Responder's permanent UCAN for initiator
    signed_ucan_pub: String,        // Responder's UCAN pub key, PGP-signed
}

After this exchange:

• Both users mark each other as first_sync = true
• Complete device lists are stored
• Permanent UCANs with connect + share capabilities are exchanged
• Future connections use the simpler UcanAndUserExchange flow

Regular Connection Flow

For established connections (first_sync = true), only current session information is exchanged:

UcanAndUserExchange - Used for both initiator and responder:

UcanAndUserExchange {
    ucan_token: String,             // Permanent UCAN for peer
    peer_user: User,                // Sender's identity
    peer_device: Device,            // Sender's current device
    connection_type: ConnectionType, // Connection purpose
    signed_ucan_pub: String,        // Sender's UCAN pub key, PGP-signed (10min validity)
}

This simpler flow is used because:

• Identities are already known and stored
• Only current device/session info needs verification
• Permanent UCANs are already established

Handshake Validation Steps

Token Validation

1. Structure Check: Parse UCAN format and verify required fields
2. Signature Verification: Validate cryptographic signature
3. Expiration Check: Ensure token hasn’t expired
4. Capability Check: Confirm user-connect permission exists
5. Audience Validation: For permanent tokens, verify audience matches presenter

Identity Verification

1. PGP Signature Check: Verify signed UCAN public key with PGP certificate
2. UCAN Key Extraction: Extract and validate UCAN public key from signature
3. Consistency Check: Ensure UCAN key matches token issuer/audience

Delegation Chain Validation

For delegated connections, validate the embedded proof chain:

1. Parse Embedded Proof: Extract parent token from facts field
2. CID Verification: Ensure embedded proof CID matches proof reference
3. Recursive Validation: Follow chain back to root authority
4. Capability Inheritance: Verify each link has necessary permissions

Connection Types and Actions

After handshake completion, connections can serve different purposes:

• UserSync: General user data synchronization
• LiveEdit: Real-time document collaboration
• DeviceSync: Synchronizing between user’s own devices
• AddDevice: Adding a new device to user’s identity

Security Properties

The handshake protocol ensures:

Mutual Authentication: Both peers prove their identities cryptographically

Perfect Forward Secrecy: QUIC channels use ephemeral keys for transport encryption

Capability-Based Access: UCAN tokens provide precise permission control

Delegation Integrity: Proof chains ensure delegated permissions are legitimate

Replay Protection: Token expiration prevents reuse of old credentials

Identity Consistency: PGP signatures bind UCAN keys to stable identities

What Happens After Handshake

Once the handshake completes successfully:

1. Persistent Storage: Each peer stores the other’s identity and UCAN tokens in their local database
2. Connection Ready: Peers can now share resources and collaborate
3. Future Connections: Subsequent connections use permanent UCANs instead of one-time tokens
4. Resource Sharing: Users can grant each other access to documents and other resources
5. Delegation Capability: Each user can now delegate connection permissions to others on behalf of their peer

The handshake establishes not just connectivity, but a cryptographic trust relationship that enables all future collaboration between the peers.
