Comment Threads

Comment threads in Sthalam enable real-time conversations between publishers and viewers, as well as between viewers themselves. A single document can have multiple independent comment threads in different locations (e.g., separate discussions for different sections of a blog post). Unlike forms (append-only) and main content (read-only), comment threads use bidirectional synchronization with crud/write permissions, allowing all participants (publisher and all viewers) to read and write collaboratively.

Key Architecture:

Local-first writes: Comments written to local Yjs doc first (instant UI update)
State vector sync: Participants exchange state vectors with node to sync only missing CRDT updates
Bidirectional: Both viewer and node send state vectors and respond with diffs
Never full doc: Only CRDT diffs transferred after initial sync
All threads within a document are stored in the same thread_comments_doc but are kept separate by thread_id

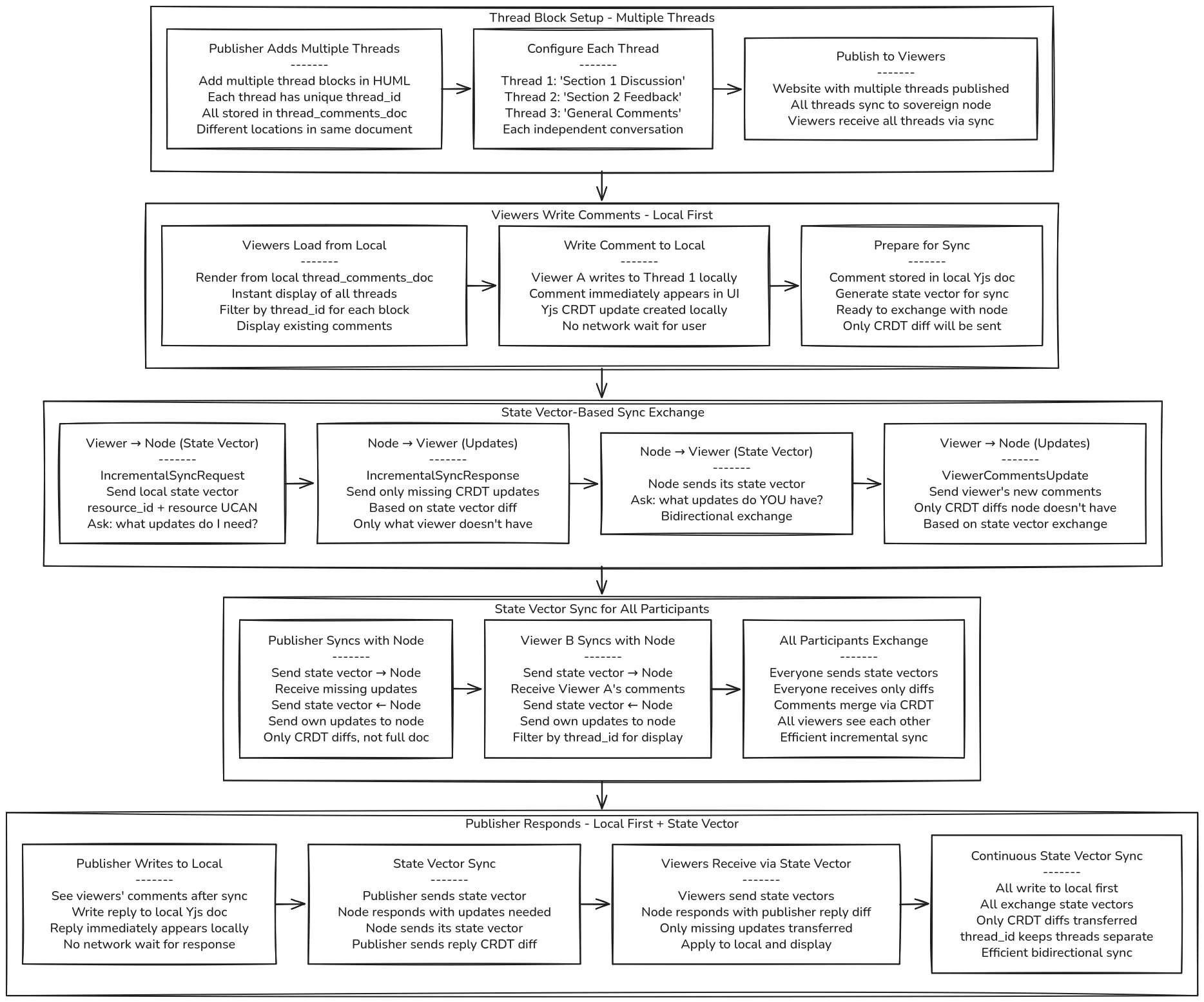

Comment Thread Flow

Viewer Experience

Step 1: Opening Thread

When viewer loads website with thread block:

Render Thread: Display existing comments
Show Input: Comment composition area
UCAN Permission: crud/write for thread_comments_doc
Load Comments: Fetch and display existing thread

Step 2: Writing Comments to Local First

Comment Composition with thread_id (Local-First):

// User types comment in specific thread (e.g., "section1_thread")
const commentText = "Great insights on decentralization!";
const threadId = "section1_thread"; // From the thread block's block_id

// Create comment object
const comment = {
  id: generateUUID(),
  thread_id: threadId, // Identifies which thread this comment belongs to
  author: viewerPublicKey,
  author_name: viewerDisplayName,
  timestamp: Date.now(),
  text: commentText,
  replies: []
};

// Add to LOCAL Yjs doc first (instant UI update)
const threadDoc = threadCommentsDoc; // Local copy
const commentsMap = threadDoc.getMap('threads'); // Organized by thread_id
const threadArray = commentsMap.get(threadId) || threadDoc.getArray(threadId);
if (!commentsMap.has(threadId)) {
  commentsMap.set(threadId, threadArray);
}
threadArray.push([comment]);

// Comment immediately appears in viewer's UI - no network wait!
// Now prepare for state vector sync...

Key Point: Comment is written to local Yjs doc first, appearing instantly in UI. Network sync happens in background.

Step 3: State Vector Sync with Node

State Vector Exchange Protocol:

Viewer → Node (Request with State Vector):

Message::Website(WebsiteMessage::IncrementalSyncRequest {
    resource_id: resourceId,
    resource_ucan: resourceUcanToken,  // Contains crud/write permission
    state_vector: localStateVector,  // What updates do I already have?
})

Node → Viewer (Response with Missing Updates):

Message::Website(WebsiteMessage::IncrementalSyncResponse {
    sync_data: missingUpdates,  // Only CRDT diffs viewer doesn't have
    state_vector: nodeStateVector,  // What updates does node have?
})

Viewer → Node (Send Own Updates):

Message::Website(WebsiteMessage::ViewerCommentsUpdate {
    resource_id: resourceId,
    resource_ucan: resourceUcanToken,
    sync_data: viewerUpdates,  // Only CRDT diffs node doesn't have (includes new comment)
})

Key Properties:

Bidirectional state vector exchange: Both sides send state vectors
Only missing diffs: Each side sends only what the other doesn’t have
Never full doc: Only CRDT updates transferred after first sync
Instant local update: Comment appeared in UI immediately in Step 2
Background sync: Network exchange happens in background

Bidirectional Sync Model

Permission: `crud/write`

The viewer’s UCAN token for thread_comments_doc contains:

sthalam:resource:abc123:thread_comments_doc - crud/write

What crud/write Means:

Can read existing comments via state vector sync (receive missing CRDT updates)
Can write new comments to local first, then sync via state vector exchange
Can update own comments (if implemented)
Bidirectional state vector flow: All participants exchange state vectors and send only missing CRDT diffs
Multi-viewer support: Viewers see comments from publisher and other viewers via incremental sync
Never full doc: Only state vectors and CRDT diffs exchanged

Node Processing

Receiving Viewer Comments

When node receives ViewerCommentsUpdate with comment:

Validation (network/src/p2p/website_handler.rs:866-963):

async fn process_viewer_comments_update(
    &self,
    resource_id: String,
    resource_ucan: String,
    sync_data: String,
) -> P2PResult<()> {
    // 1. Validate resource UCAN
    let ucan = crypto_utils::ucan_utils::validate_structure(&resource_ucan).await?;

    // 2. Verify resource_id matches
    let ucan_resource_id = extract_resource_id_from_ucan(&ucan)?;
    if ucan_resource_id != resource_id {
        return Err("Resource ID mismatch");
    }

    // 3. Apply updates to thread_comments_doc
    services::apply_updates(
        &resource_id,
        &sync_data,
        &local_user.id,
        repo_ctx,
        &crypto_utils,
    ).await?;

    // 4. Increment vector clock
    repo_ctx.vector_clock_repo
        .increment_vector_clock(&resource_id, &local_device.id)
        .await?;

    // 5. Store for other participants to pull
    self.event_emitter.emit(P2PEvent::UpdatesEvent {
        resource_id,
        updates: sync_data,
        client_id: 0,
    });
}

Node Stores Comments:

Node stores incremental CRDT update in thread_comments_doc
Comment available for state vector sync exchange
Other participants will receive via state vector protocol
Node acts as passive hub, never initiates

Publisher Syncs with State Vectors

Publisher State Vector Sync:

Send State Vector: Publisher sends local state vector to node
Receive Missing Updates: Node responds with CRDT diffs publisher doesn’t have (e.g., viewer comments)
Node Sends State Vector: Node sends its state vector back
Send Own Updates: Publisher sends CRDT diffs node doesn’t have
Apply to Local: Yjs CRDT merges missing updates into local doc
UI Update: New comments appear in publisher’s view

State Vector-Based Sync:

Bidirectional exchange: Both send state vectors and respond with diffs
Only missing updates: Each side calculates and sends only what other doesn’t have
Never full doc: Only CRDT diffs transferred
Efficient: State vectors are small, only changed data moves

Publisher Response

Writing Replies (Local-First)

Publisher responds to viewer comments by writing to local first:

// Publisher writes reply to LOCAL Yjs doc first
const reply = {
  id: generateUUID(),
  thread_id: "section1_thread",
  author: publisherPublicKey,
  author_name: publisherDisplayName,
  timestamp: Date.now(),
  text: "Thanks for the feedback!",
  parent_comment_id: viewerCommentId
};

// Add to LOCAL thread doc (instant UI update)
const commentsMap = threadDoc.getMap('threads');
const threadArray = commentsMap.get("section1_thread");
threadArray.push([reply]);

// Reply appears IMMEDIATELY in publisher's UI - no network wait!
// State vector sync will propagate to node in background...

Sync via State Vectors:

Publisher writes to local first (instant UI update)
Background state vector exchange with node
Node receives publisher’s reply CRDT diff
Reply available for viewers via state vector sync

Viewers Sync with State Vectors

Incremental Sync (network/src/p2p/website_handler.rs:772-862):

async fn process_incremental_sync_response(
    &self,
    resource_id: String,
    sync_data: String,
) -> P2PResult<()> {
    // Apply node's updates (including publisher replies)
    let viewer_updates = services::apply_and_generate_viewer_updates(
        &resource_id,
        &local_user.id,
        &sync_data,
        repo_ctx,
        &crypto_utils,
    ).await?;

    // Emit to frontend for UI update
    self.event_emitter.emit(P2PEvent::UpdatesEvent {
        resource_id,
        updates: sync_data,
        client_id: 0,
    });

    // Send any new viewer comments back
    self.send_message(Message::Website(WebsiteMessage::ViewerCommentsUpdate {
        resource_id,
        resource_ucan,
        sync_data: viewer_updates,
    })).await?;
}

UI Update:

Viewers send state vectors to node
Node responds with publisher’s reply CRDT diff
Viewers apply diff to local doc
Publisher’s reply appears in viewer’s thread
Ongoing conversation continues

Real-time Synchronization

Active Connections

When participants (publisher and multiple viewers) are online simultaneously:

State Vector-Based Propagation:

Viewer A writes comment to local → instant UI update
Viewer A exchanges state vectors with node → node receives comment CRDT diff
Publisher sends state vector to node → receives Viewer A’s comment diff
Publisher writes reply to local → instant UI update
Publisher exchanges state vectors with node → node receives reply diff
Other viewers send state vectors → receive both comment and reply diffs
All participants apply diffs to local docs
Continuous state vector exchange creates near real-time experience

Sub-Second Latency:

Instant local writes (no network wait for UI update)
Frequent state vector exchanges (e.g., every few seconds)
QUIC connections provide fast transport
State vectors are tiny (just version info)
CRDT diffs are small and efficient
Only missing updates transferred

Offline Resilience

When parties are offline:

Viewer Offline:

Comments stored locally (Yjs CRDT)
Synced to node when reconnected
Publisher receives during next sync

Publisher Offline:

Viewer comments sent to node
Stored in node’s thread_comments_doc
Publisher receives when back online
Publisher’s replies queued similarly

CRDT Properties for Threads

Conflict-Free Merging Across Multiple Threads

Concurrent Comments from Multiple Participants in Different Threads:

Viewer A writes to "section1_thread" locally → instant UI update
Viewer B writes to "section2_thread" locally → instant UI update
Publisher writes to "section1_thread" locally → instant UI update
Viewer C writes to "general_thread" locally → instant UI update

All participants exchange state vectors with node
Node responds with only missing CRDT diffs for each participant
Each participant applies missing diffs to local doc
Each client filters by thread_id to display comments in the right place

All comments merge without conflict:

Local-first writes: All write to local Yjs doc first (instant UI)
State vector sync: Exchange state vectors, receive only missing diffs
Single thread_comments_doc stores all threads
Each comment tagged with thread_id
Yjs Map organizes comments by thread
Each thread’s Array maintains insertion order
Each comment has unique ID
No overwrites or data loss
Eventual consistency guaranteed via CRDT
All viewers see comments from each other in the correct threads
Never full doc: Only state vectors and diffs exchanged

Awareness & Presence

User Awareness (optional feature):

// Track who's currently viewing
const awareness = new Awareness(threadDoc);

awareness.setLocalStateField('user', {
  name: viewerDisplayName,
  color: '#4285f4',
  cursor: null
});

// See who else is active
awareness.on('change', () => {
  const states = awareness.getStates();
  // Display active users in UI
});

Use Cases

Blog Post Discussions with Multiple Threads

Engage readers in focused conversations:

Multiple threads for different sections of the post
“Introduction” thread, “Technical Details” thread, “Conclusion” thread
Viewers ask section-specific questions and discuss with each other
Publisher responds with clarifications in relevant threads
Community discussions form between multiple viewers in each thread
Collaborative knowledge building organized by topic
All participants poll node to see everyone’s comments across all threads

Interactive newsletters with community engagement:

Readers share thoughts on content
Other readers respond to each other’s feedback
Publisher acknowledges feedback
Ongoing dialogue between publisher and multiple subscribers

Community Threads

Build engaged communities with multi-viewer discussions:

Viewer-to-viewer discussions (all viewers see each other’s comments)
Multiple viewers can engage in threaded conversations
Publisher moderation and participation
Sovereign community without platform control
All participants push to node and poll to pull everyone’s updates

Q&A Sections

Answer viewer questions:

Viewers post questions
Publisher provides answers
Knowledge base builds over time

Data Structure for Multiple Threads

Single Document, Multiple Threads

All threads within a document are stored in the same thread_comments_doc:

// thread_comments_doc structure
{
  threads: YMap {
    "section1_thread": YArray [
      { id: "c1", thread_id: "section1_thread", author: "viewer_a", text: "Great post!", ... },
      { id: "c2", thread_id: "section1_thread", author: "publisher", text: "Thanks!", ... }
    ],
    "section2_thread": YArray [
      { id: "c3", thread_id: "section2_thread", author: "viewer_b", text: "Question...", ... },
      { id: "c4", thread_id: "section2_thread", author: "viewer_c", text: "I agree...", ... }
    ],
    "general_thread": YArray [
      { id: "c5", thread_id: "general_thread", author: "viewer_a", text: "Overall thoughts", ... }
    ]
  }
}

Key Properties:

Single Yjs Doc: All threads share thread_comments_doc
Organized by thread_id: YMap with thread_id as key
Per-thread Arrays: Each thread has its own YArray of comments
Independent Sync: Entire doc syncs, clients filter by thread_id for display
Efficient Updates: Only changed threads trigger updates in the CRDT

Rendering Multiple Threads

When displaying a website with multiple thread blocks:

// Pull entire thread_comments_doc from node
const threadDoc = await pullFromNode(resourceId, "thread_comments_doc");
const threadsMap = threadDoc.getMap('threads');

// Render each thread block independently
function renderThreadBlock(threadId) {
  const threadArray = threadsMap.get(threadId) || [];
  const comments = threadArray.toArray();

  // Filter comments for this specific thread
  const threadComments = comments.filter(c => c.thread_id === threadId);

  // Sort by timestamp and render
  return threadComments.sort((a, b) => a.timestamp - b.timestamp);
}

// Each thread block on the page renders independently
renderThreadBlock("section1_thread"); // Shows only section 1 comments
renderThreadBlock("section2_thread"); // Shows only section 2 comments
renderThreadBlock("general_thread");  // Shows only general comments

Technical Considerations

Comment Ordering

Timestamp-Based:

// Sort comments by timestamp
const sortedComments = comments.sort((a, b) => a.timestamp - b.timestamp);

Nested Replies:

// Thread structure with replies
const comment = {
  id: "comment_1",
  text: "Great post!",
  replies: [
    {
      id: "reply_1",
      parent_id: "comment_1",
      text: "Thanks!"
    }
  ]
};

Moderation

Publisher Control:

Publisher can delete comments (if crud/delete permission)
Filter inappropriate content
Block specific viewers (revoke UCAN)

Viewer Limitations:

Can only write, not delete others’ comments
Cannot modify thread structure
Permissions enforced by UCAN

Spam Prevention

Rate Limiting:

Node enforces rate limits per viewer
Prevent comment flooding
Protect against abuse

UCAN Expiration:

Time-limited access tokens
Revoke access if needed
Temporary viewer permissions

Privacy & Security

Identity:

Viewer identified by public key
Pseudonymous or real names (viewer’s choice)
Cryptographic proof of authorship

Data Ownership:

Publisher owns all thread data
Viewers have read/write access, not ownership
Can export and backup discussions

Encryption:

Comments encrypted with resource AES key
Only authorized parties can decrypt
End-to-end privacy maintained

What Happens in a Thread

Viewer Opens: Website loads with multiple thread blocks from LOCAL copy (instant)
Render from Local: Viewer renders from local thread_comments_doc immediately
Thread Filtering: Client filters comments by thread_id to display in correct thread blocks
Viewer Writes to Local: New comment written to LOCAL Yjs doc first (instant UI update, no network wait)
State Vector Sync: Viewer sends state vector to node in background
Node Responds: Node sends missing CRDT diffs viewer doesn’t have
Viewer Sends Updates: Viewer sends CRDT diffs (including new comment) node doesn’t have
Other Participants Sync: Publisher and other viewers exchange state vectors with node
Receive Missing Diffs: Each participant receives only CRDT diffs they don’t have
Apply to Local: Each participant applies diffs to local doc, renders by thread_id
Publisher Writes to Local: Reply written to LOCAL first (instant UI), then synced via state vectors
Continuous State Vector Exchange: All participants regularly exchange state vectors
Multi-Viewer Multi-Thread Collaboration: Viewers see and respond to each other’s comments via state vector sync
Eventual Consistency: CRDT ensures all parties converge to same state across all threads

The bidirectional sync model for comment threads enables real-time, collaborative discussions between publishers and multiple viewers—with viewers able to discuss with each other across multiple independent threads—all while maintaining sovereignty. Key architecture: Local-first writes (instant UI), state vector-based sync (only missing diffs), never full doc transfers, node never initiates. Each document can have as many thread blocks as needed, all stored efficiently in a single thread_comments_doc and organized by thread_id.
