Viewer Connections

Unlike Livnote’s peer-to-peer collaboration model where both parties have equal permissions, Sthalam uses a publisher-node-viewer architecture. Viewers connect to the publisher’s sovereign node to access published content with specific, granular permissions.

Connection Architecture

Publisher ↔ Node ↔ Viewer:

• Publisher creates and publishes content to their sovereign node
• Node hosts content and handles viewer connections
• Viewers connect to node to access and interact with content

This differs from Livnote where peers connect directly for collaborative editing.

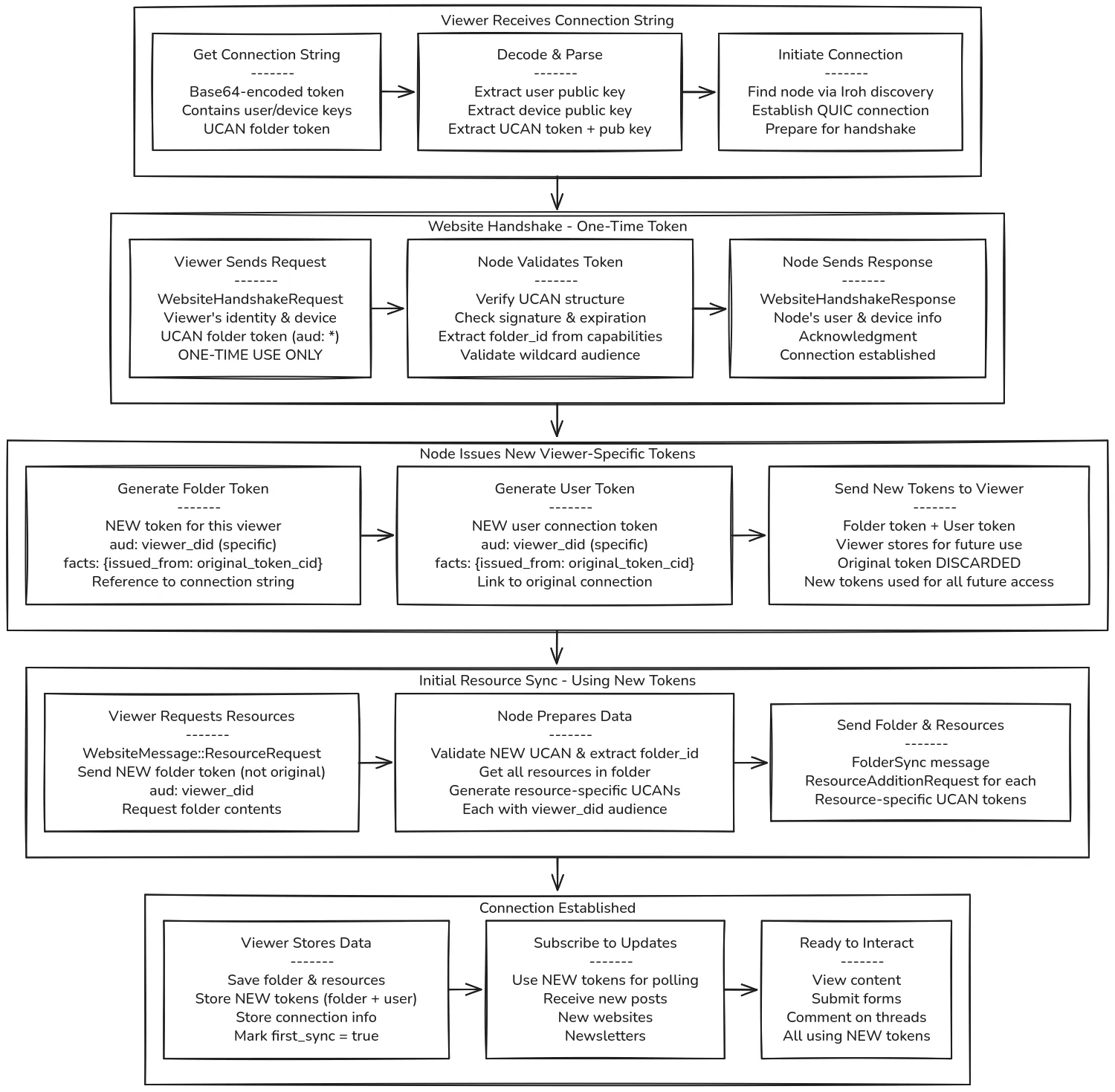

Viewer Handshake Protocol

Connection String Structure

The publisher shares a base64-encoded connection string containing:

{
  "user_public_key": "publisher_pgp_public_key",
  "device_public_key": "node_device_public_key",
  "ucan_token": "folder_access_token",
  "ucan_pub_key": "ucan_verification_key"
}

Step 1: Initiating Connection

When a viewer pastes the connection string:

1. Decode Base64: Extract JSON structure
2. Parse Components: Get user key, device key, UCAN token
3. Device Discovery: Find node via Iroh discovery using device key
4. QUIC Connection: Establish encrypted transport connection

Step 2: Website Handshake

The viewer handshake differs from Livnote’s first-time connection:

WebsiteHandshakeRequest - Sent by viewer:

WebsiteHandshakeRequest {
    viewer_user: User,              // Viewer's identity
    viewer_device: Device,          // Viewer's device info
    ucan_token: String,             // Folder access token
}

Node Validation:

1. Parse and validate UCAN token structure
2. Verify cryptographic signature
3. Check token expiration
4. Extract folder_id from capabilities
5. Verify folder exists and is accessible

WebsiteHandshakeResponse - Sent by node:

WebsiteHandshakeResponse {
    node_user: User,                // Publisher's identity
    node_device: Device,            // Node's device info
}

Step 3: Resource Request

After handshake, viewer requests folder contents:

ResourceRequest Message:

WebsiteMessage::ResourceRequest {
    ucan_token: String,             // Same folder UCAN
}

Node Processing:

1. Re-validate UCAN token
2. Extract folder_id from capabilities: extract_folder_id_from_ucan()
3. Query database for all resources in folder
4. Prepare each resource for viewer

Step 4: Resource Preparation

For each resource in the folder, the node creates viewer-specific permissions:

Folder Sharing (services/src/node_service.rs:50-144):

• Generate read-only folder UCAN for viewer
• Delegate from publisher’s folder token
• Use crud/read permission

Resource Sharing (services/src/node_service.rs:146-289):

• For each resource, generate resource-specific UCAN
• Create 3-document permissions:
  • blocksuite_doc - crud/read (main content, read-only)
  • thread_comments_doc - crud/write (comments, bidirectional)
  • form_submissions_doc - crud/append (submissions, append-only)
• Re-encrypt resource AES key for viewer’s PGP public key (later releases: generate new AES key per viewer)
• Package as ResourceSyncData

Permission Generation Example:

let permissions = vec![
    (
        format!("sthalam:resource:{}:blocksuite_doc", resource_id),
        "crud/read".to_string(),
    ),
    (
        format!("sthalam:resource:{}:thread_comments_doc", resource_id),
        "crud/write".to_string(),
    ),
    (
        format!("sthalam:resource:{}:form_submissions_doc", resource_id),
        "crud/append".to_string(),
    ),
];

Step 5: Content Distribution

Node sends all folder contents to viewer:

Folder Sync:

Message::FolderSync(
    FolderSyncMessage::UnknownFoldersPayload {
        folder_data: vec![folder_with_viewer_token],
    }
)

Resource Distribution: For each resource in folder:

Message::ResourceAdditionRequest(ResourceSyncData {
    resource: resource_metadata,
    resource_keys: vec![viewer_encrypted_key],
    share_records: vec![viewer_share_record],
    vector_clocks: viewer_vector_clocks,
})

Completion Signal:

Message::Website(WebsiteMessage::InitialSyncComplete {
    folder_id: folder_id,
    resource_count: resources.len(),
})

Step 6: Viewer Storage

Viewer processes and stores content:

1. Validate Resource UCANs: Check signatures and permissions
2. Decrypt AES Keys: Use viewer’s PGP private key
3. Store Resources: Save to local encrypted database
4. Mark Connection: Set first_sync = true for publisher
5. Ready State: Content available for viewing and interaction

Connection vs. Livnote

Livnote (Peer-to-Peer):

• FirstConnectRequest/Response: Full bidirectional identity exchange
• Equal Permissions: Both peers can create, share, and collaborate
• Direct Connections: Peers connect directly to each other
• User Sync: Manifest-based synchronization of shared users

Sthalam (Publisher-Viewer):

• WebsiteHandshake: Asymmetric handshake (viewer requests, node provides)
• Granular Permissions: Viewer receives specific read/write/append permissions per document
• Node-Mediated: Viewer connects to node, not directly to publisher
• Website Sync: Resource-based synchronization with permission validation

Subscription Behavior

After initial connection, viewers are subscribed to the publisher’s folder:

Pull-Based Updates:

• New resources added to folder → Viewer receives when polling node during incremental sync
• Existing resources updated → Viewer requests changes via state vectors
• No push notifications → Viewer must actively poll node to receive new content

Persistent Connection:

• Connection information stored locally
• Subsequent connections use simpler incremental sync
• No need to re-handshake on reconnection

Security Properties

Token-Based Authorization: UCAN tokens encode all permissions

Capability Validation: Every sync operation validates resource UCAN tokens

Granular Access: Different permissions for content, comments, and submissions

Proof Chains: Resource UCANs chain back to folder UCAN and publisher’s root authority

Encrypted Data: All content encrypted with AES keys, re-encrypted per viewer (later releases: new AES key per viewer)

What Happens Next

After successful connection:

1. Content Available: Viewer can access all resources in folder
2. Interaction Enabled: Submit forms, write comments based on permissions
3. Sync Ready: Incremental sync keeps content up-to-date
4. Subscription Active: Automatic delivery of new publisher content

The viewer connection model enables sovereign content distribution—publishers maintain full control while viewers gain secure, permission-based access to published content.
